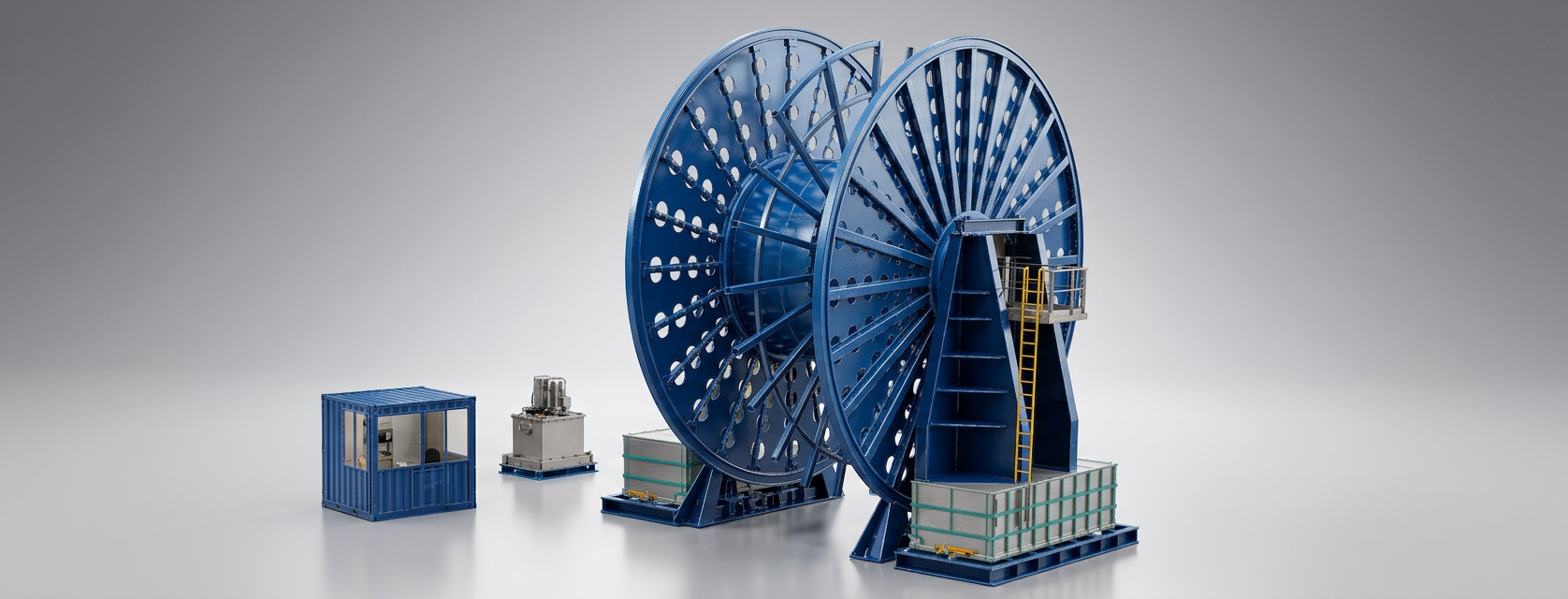

PASSER's Reel Drive System is designed for use when spooling cable onto a reel. The reel is placed onto the Reel Drive System and the system will then elevate the reel before spooling start.
Function
The Reel Drive system has three primary motions and is powered by a Hydraulic Power Unit (HPU).
The three main motions are:
Rotation Two slewing gears with pinions drives a slewing bearing to rotate the reel adapter.
Lifting Vertical Each tower holds two large cylinders for lifting the reel.
Horizontal Movement Two cylinders, one on each side of the tower base moves the towers in the horizontal plane.
Specifications
Maximum capacity (payload): 500T
Minimum reel diameter: 6,4m
Maximum reel diameter: 12,4m
Reel Interface type: Standard / Customized
Maximum speed: 1rpm
Max line pull: 25T/m
Operating Voltage: 400V/50Hz of 440V/60Hz
Function
The Reel Drive system has three primary motions and is powered by a Hydraulic Power Unit (HPU).
The three main motions are: Rotation Two slewing gears with pinions drives a slewing bearing to rotate the reel adapter.
Lifting Vertical Each tower holds two large cylinders for lifting the reel.
Horizontal Movement Two cylinders, one on each side of the tower base moves the towers in the horizontal plane.
1 Front View
2 Side view
3 An optional caption for the image that will be added to the gallery. Enter any descriptive text for this image that you would like visitors to be able to read.
4 An optional caption for the image that will be added to the gallery. Enter any descriptive text for this image that you would like visitors to be able to read.
5 An optional caption for the image that will be added to the gallery. Enter any descriptive text for this image that you would like visitors to be able to read.
Features
Modular Design
Our design is modular to suit customer specific requirements and constraints.
Integrated Lifting
Fully integrated reel lifting function for safe and efficient setup.
Safety Measures
Adjustable reel clamping and locking system for secure and stable operation
Dismountable
The RDS system is designed to be disassembled and can be transported on road without need for special transport.
Precise
Advanced tension and speed controls for precise cable management
Certifications
CE marked for conformity and safety, designed and delivered in compliance with the upcoming EU Machinery Regulation (EU) 2023/1230, replacing Directive 2006/42/EC
