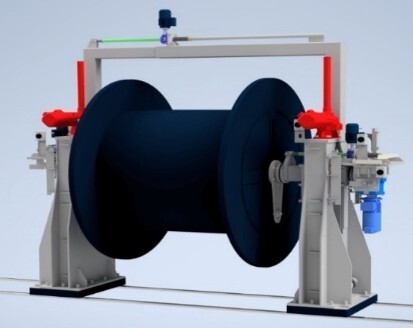

datasheet spooling station 1

Spooling Station Reel

PASSER’s Spooling Station Reel delivers reliable,
 efficient cable handling across diverse industrial settings. Tailored to meet specific process requirements, the system supports a wide range of reel sizes and cable types, blending robust engineering with advanced control for safe, high-quality spooling operations

Even winding via side-to-side traverse, protecting cable integrity

Semi-automatic operation reduces manual work and training demands

Sturdy build and flexible power input (0–400V) for demanding use

Modular Design

Modular design for customer-specific adaptability



Integrated Lifting

Integrated reel lifting for safe, effortless setup

Safe Operation

Adjustable reel clamping and locking for stability

Precise Operation

Advanced tension and speed controls for precise cable management



Technical Specifications

Reel Inner Diameter: 0,5m and up
Reel Outer Diameter: Customized to process requirements
Reel Width: Customized to process requirements
Cable Diameter:  10 to 100mm
Height Spooling Station:  Customized to process requirements
Tensioner Pull Force:  Up to 5T
Power Requirements: 400V/50Hz or 440V/60Hz



Certifications

  • CE marked for conformity and safety, designed to comply with EU machinery directive EU 2006/42 (From 2027, EU machinery directive 2023/1230 will be governing).

  • 2014/35/EU Low Voltage Directive

  • 2014/30/EU Electromagnetic Compatibility Directive
